Resistivity and IP System
10 Channel Automatic Resistivity and IP System
ARES II is a high-tech instrument well equipped for measuring and displaying resistivity and IP data. Its advantages are particularly evident in large-scale 2D and 3D surveys (fields with up to 65,000 electrodes), water mapping projects, and monitoring of structural changes over time.
Resistivity and IP
Main Applications
Groundwater prospecting, geotechnical studies, dam control, environmental monitoring, geological studies, archaeology, detection of cavities and underground objects, hydrogeology, marine studies, in wells and cross-hole studies between wells.
ARES II
The instrument is designed for easy field use without the need for a computer, is powered by a 12 V battery or generator, supports a range of electrode arrangements and is compatible with common interpretation software. ARES II is a useful instrument for geophysical teams and academic groups.
ARES II - Equipment and Accessories

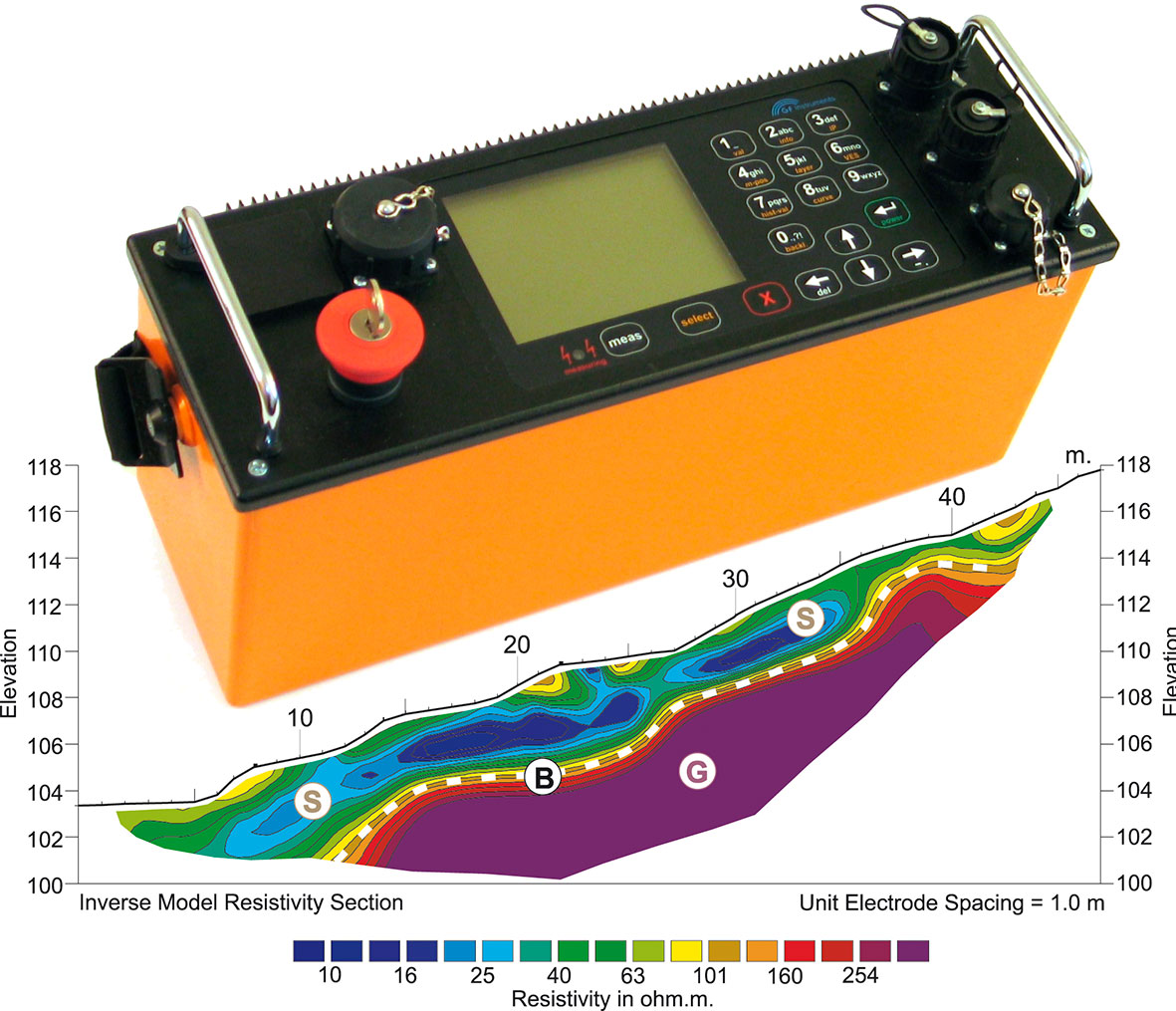

ARES II

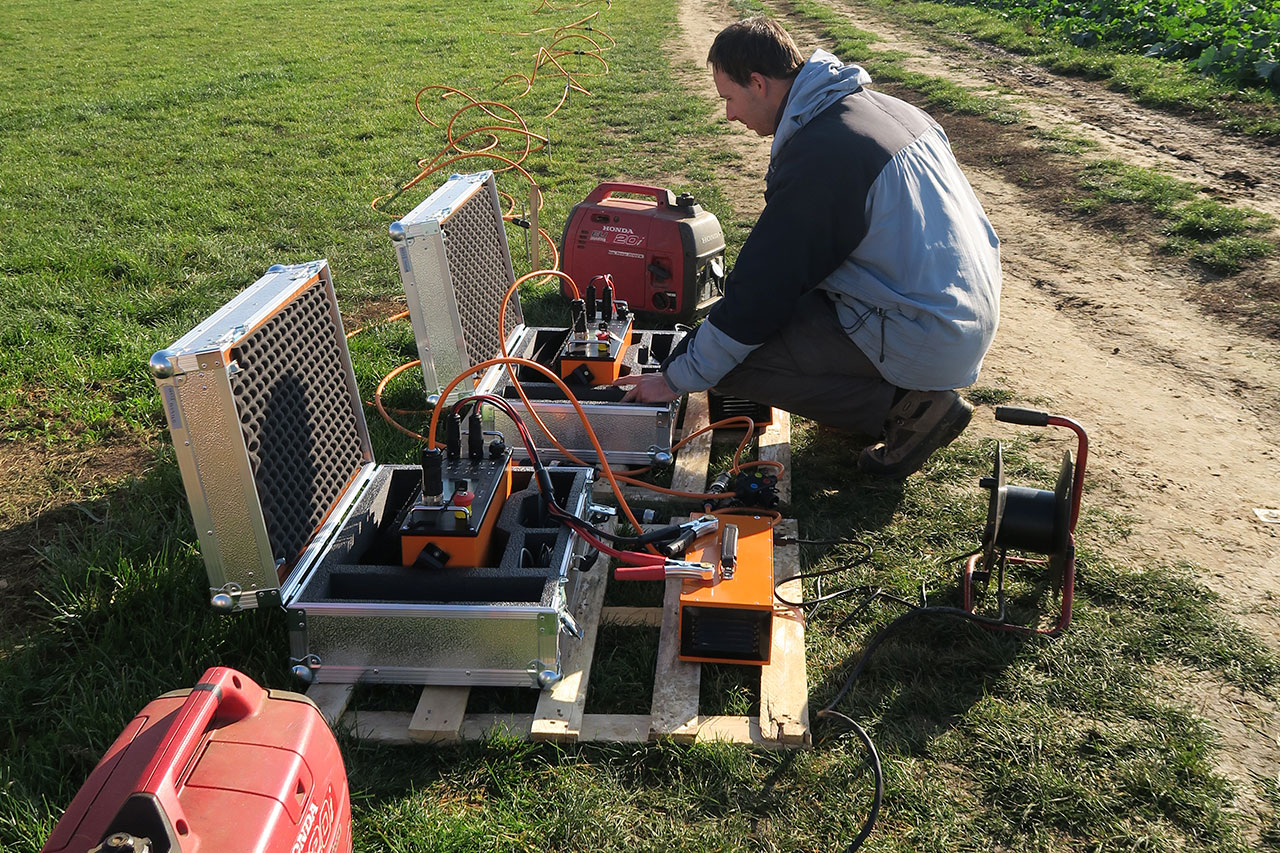

Connecting two ARESII

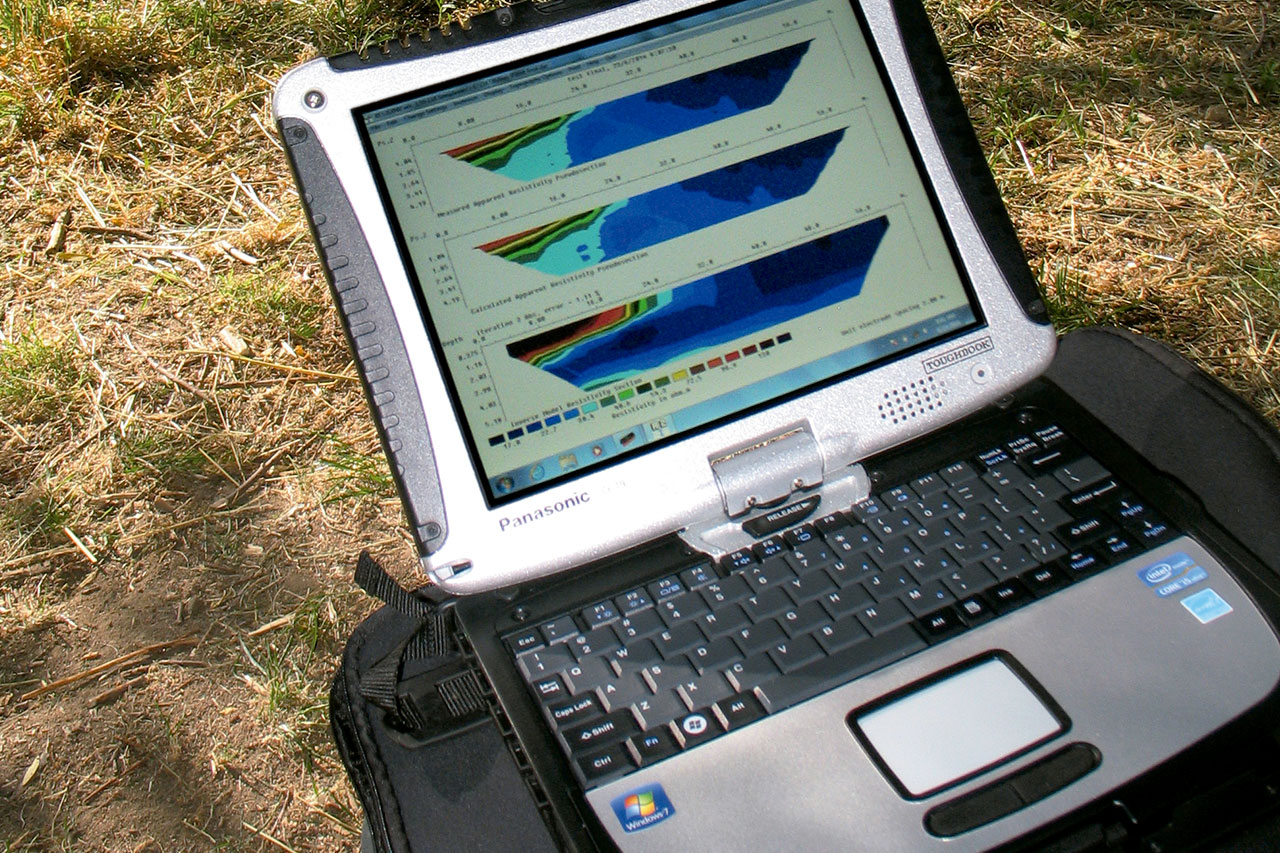

Remote Control

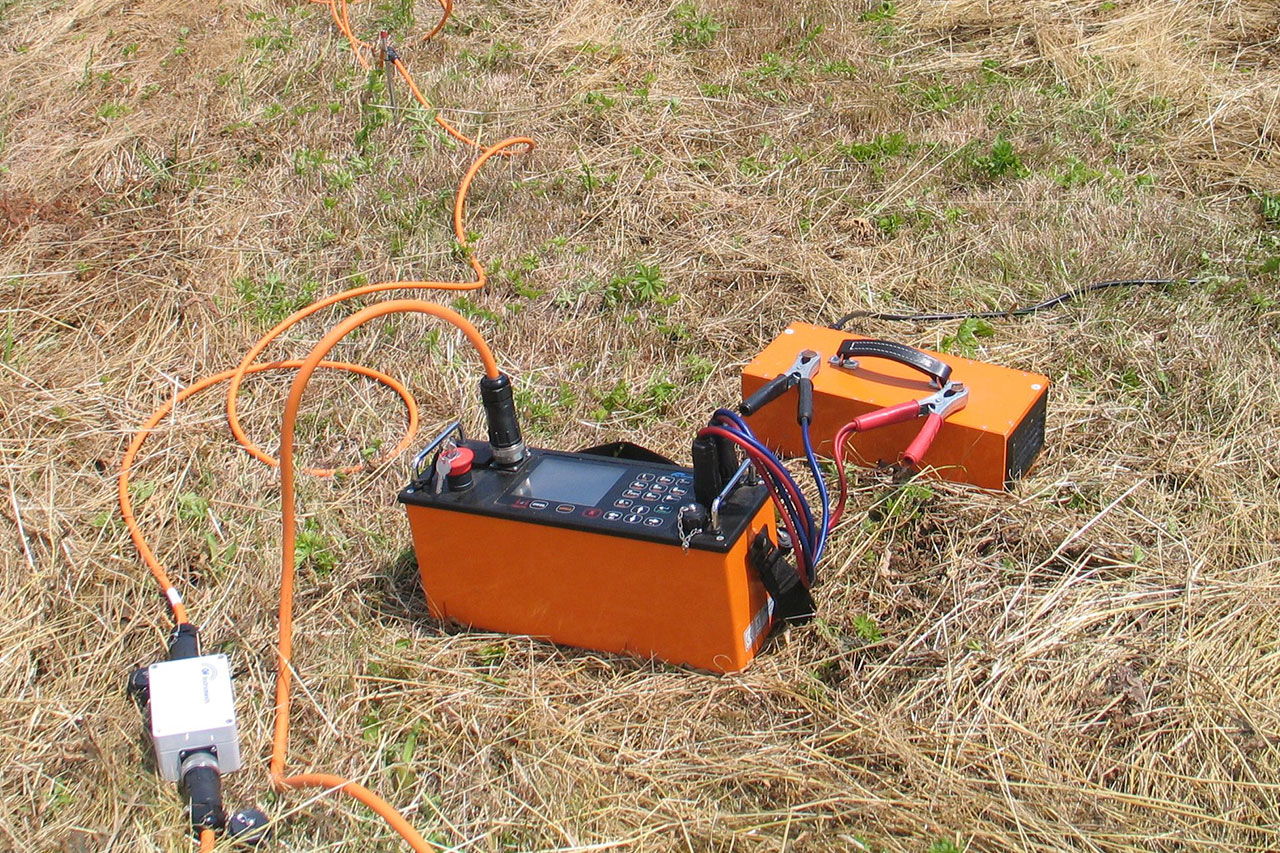

ARES II and MCS5-R

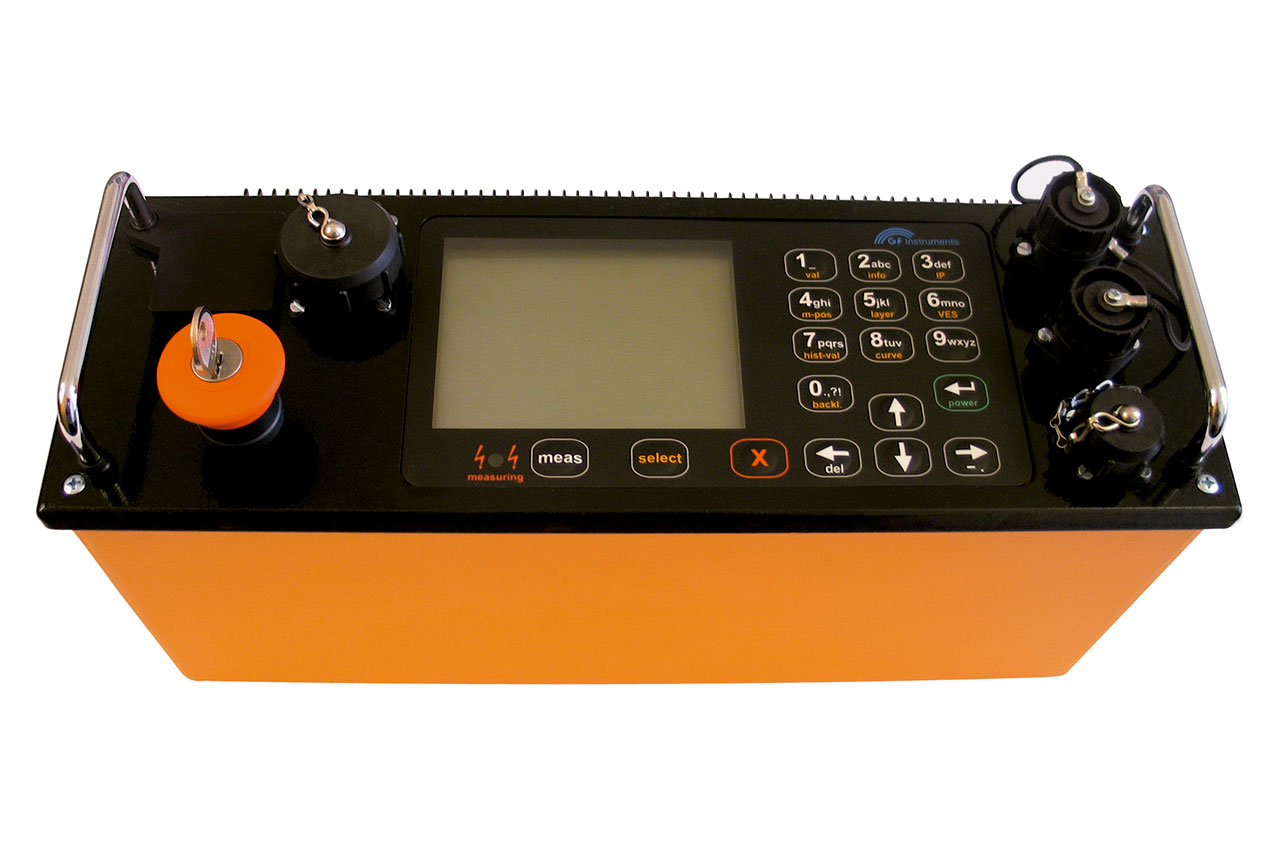

Control Unit ARESII

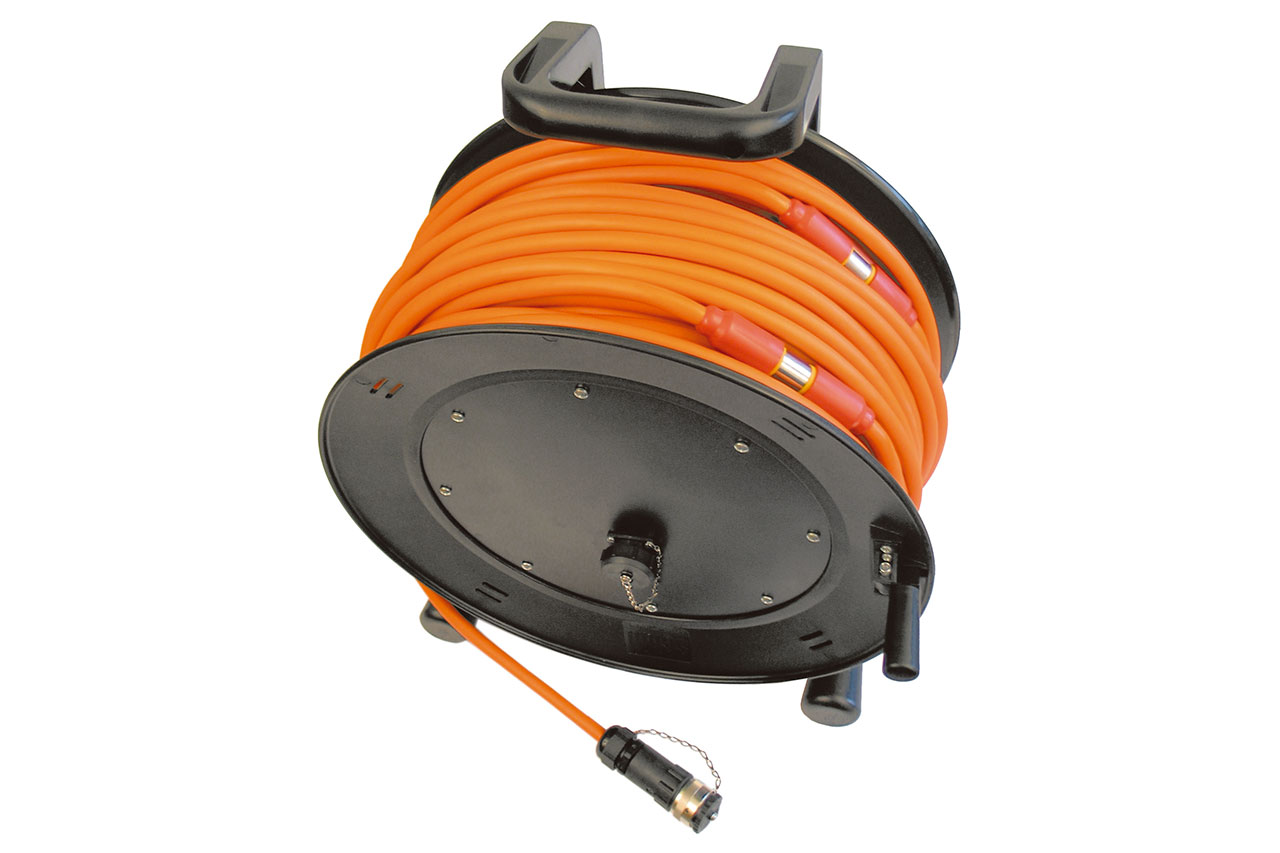

MCS5/R Single Channel Multi-Electrode Cable

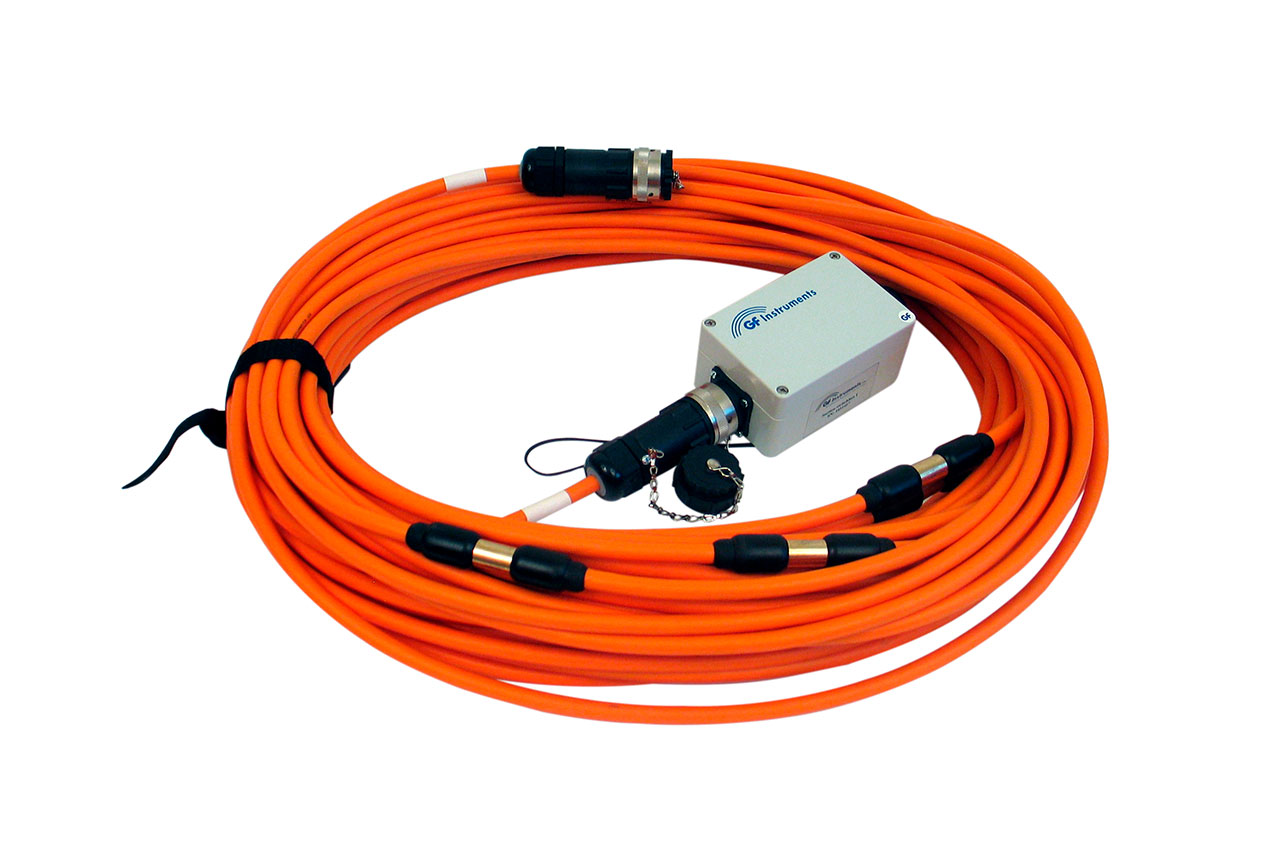

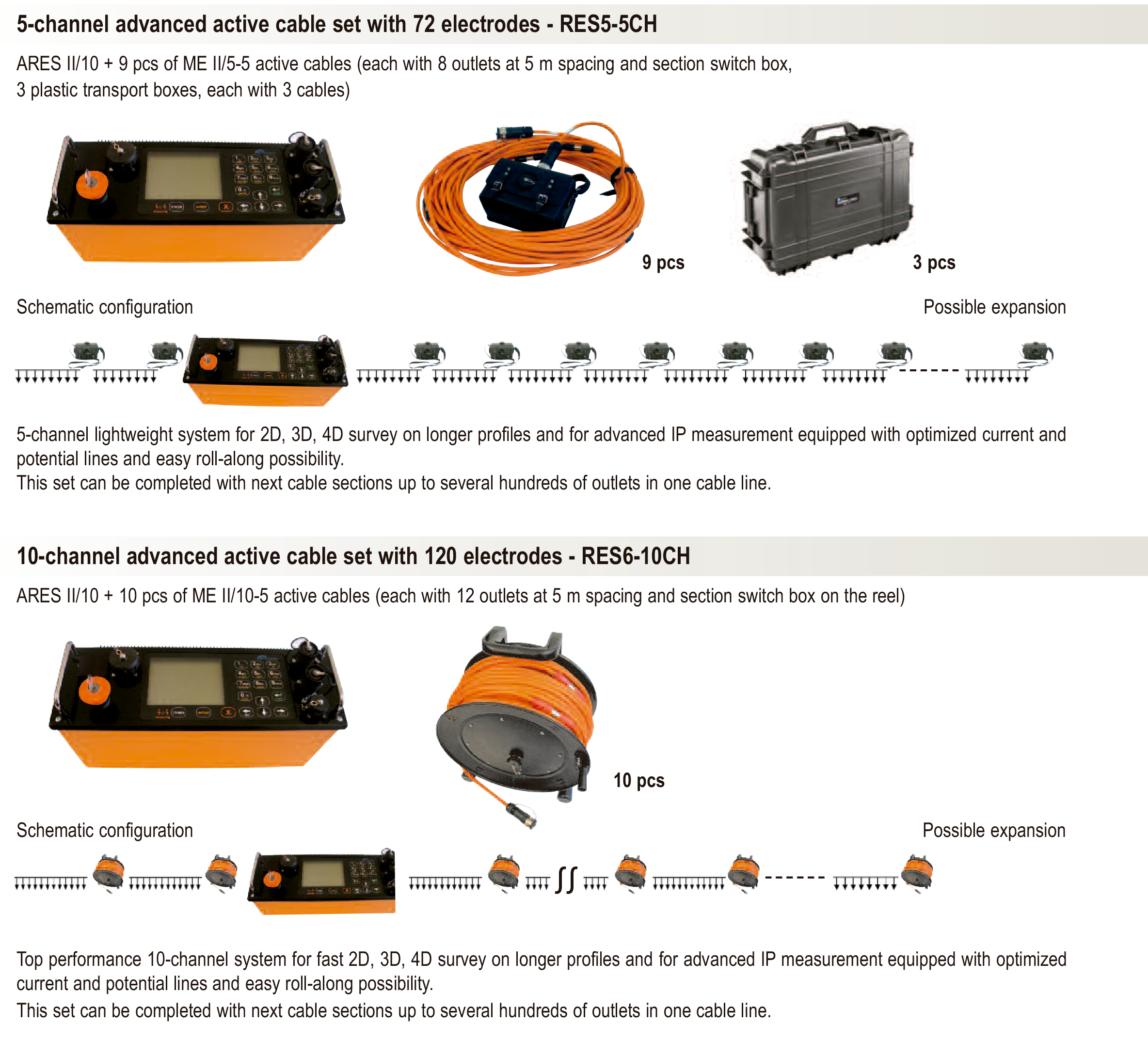

ME II/5-5 5-channel multi-electrode cable
ME II/10-5 10-channel multi-electrode cable

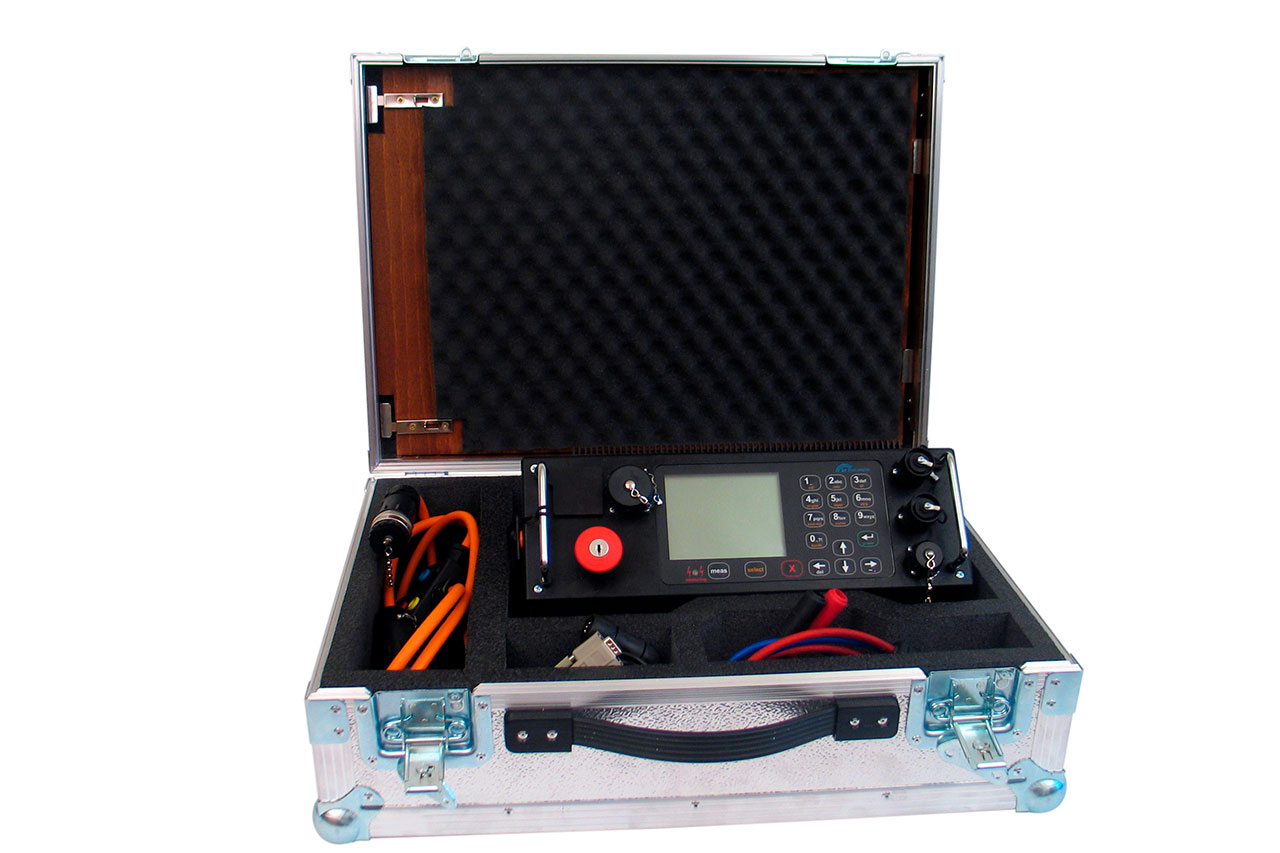

ARESII Transport Case
Resistivity and IP
Main Features - ARES II
Measurement modes: 2D/3D/4D multi-electrode resistivity tomography and PI tomography, VES – Vertical Electrical Sounding (resistivity and PI), RP – Resistivity and PI profiles, SP – Self-potential, Cross-Hole Tomography and Continuous GPS measurement
