The xTEM

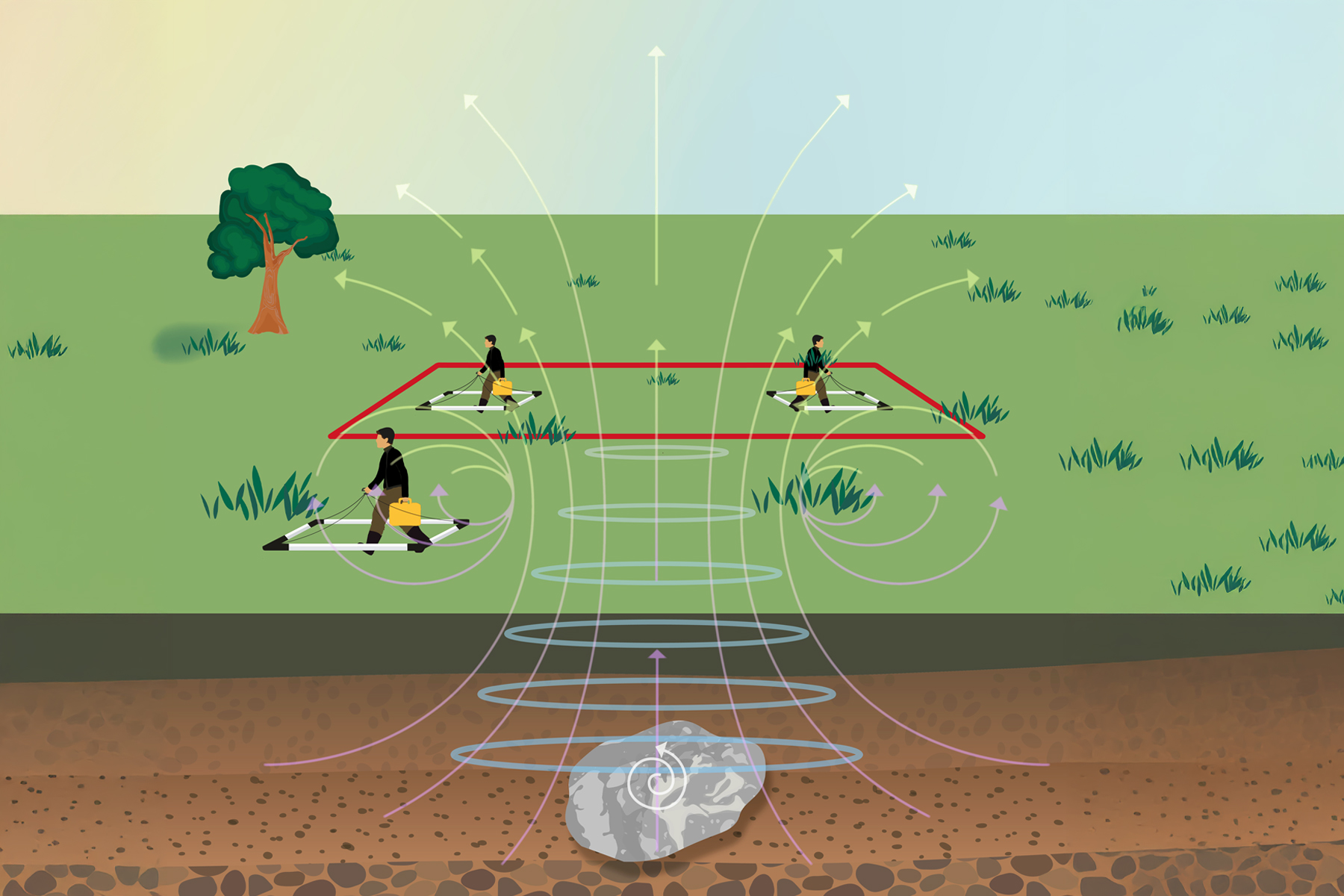

  1. The xTEM geoscanner delivers efficient, reliable data for geophysical mineral exploration. It conducts measurements from a single source with wireless, independent, lightweight receivers, capturing data to depths beyond 600 m (2000 ft). The high-powered hybrid system delivers increased depth of investigation alongside 3D imaging capabilities.

xTEM

Deep mineral exploration
The xTEM delivers accurate data up to depths of 1000 m


Conducting single-site measurements, capturing data reaching depths beyond 600m. The xTEM is operated via an Android or iOS app.


Configuration options


TEMcompany sTEM icon Transmitter coil sizes 40 x 40 m, 80 x 80 m, 200 x 200 m
TEMcompany sTEM icon Transmitter output current – 1 Amp (turn-off time ~ 11 us) up to 30 Amp (turn-off time ~ 30 us)
TEMcompany sTEM icon Transmitter weights – 40 m x 40 m – 6 kg pr drum
TEMcompany sTEM icon Receiver coil sizes – 3 m x 3 m (36 m2) 5 x 5 m (200 m2)
TEMcompany sTEM icon Receiver weight - 5 kg (11 lb)
TEMcompany sTEM icon Depth of investigation – 500 m -1000 m, dependent on coil configuration and geology

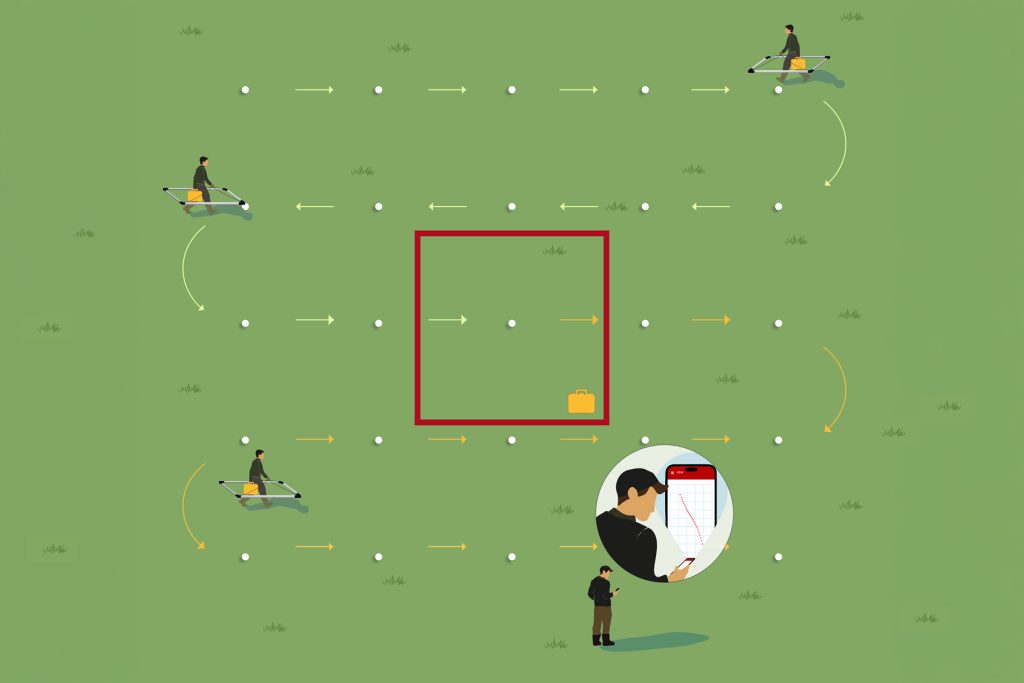

TEMcompany sTEM icon Independent wireless receivers – single or multiple units can be used simultaneously
TEMcompany sTEM icon Connectivity – WiFi, iOS & Android


Get to know the xTEM


Next-generation geoscanners for mineral exploration

The xTEM is built to deliver high-quality transient electromagnetic data suitable for effectively and quickly mapping survey areas, tracing mineral deposits, discovering suitable drill locations, and maximizing the lifetime extraction potential of mining and development projects.
